9F18K1X๏ƒ

Product Link: 9F18K1X

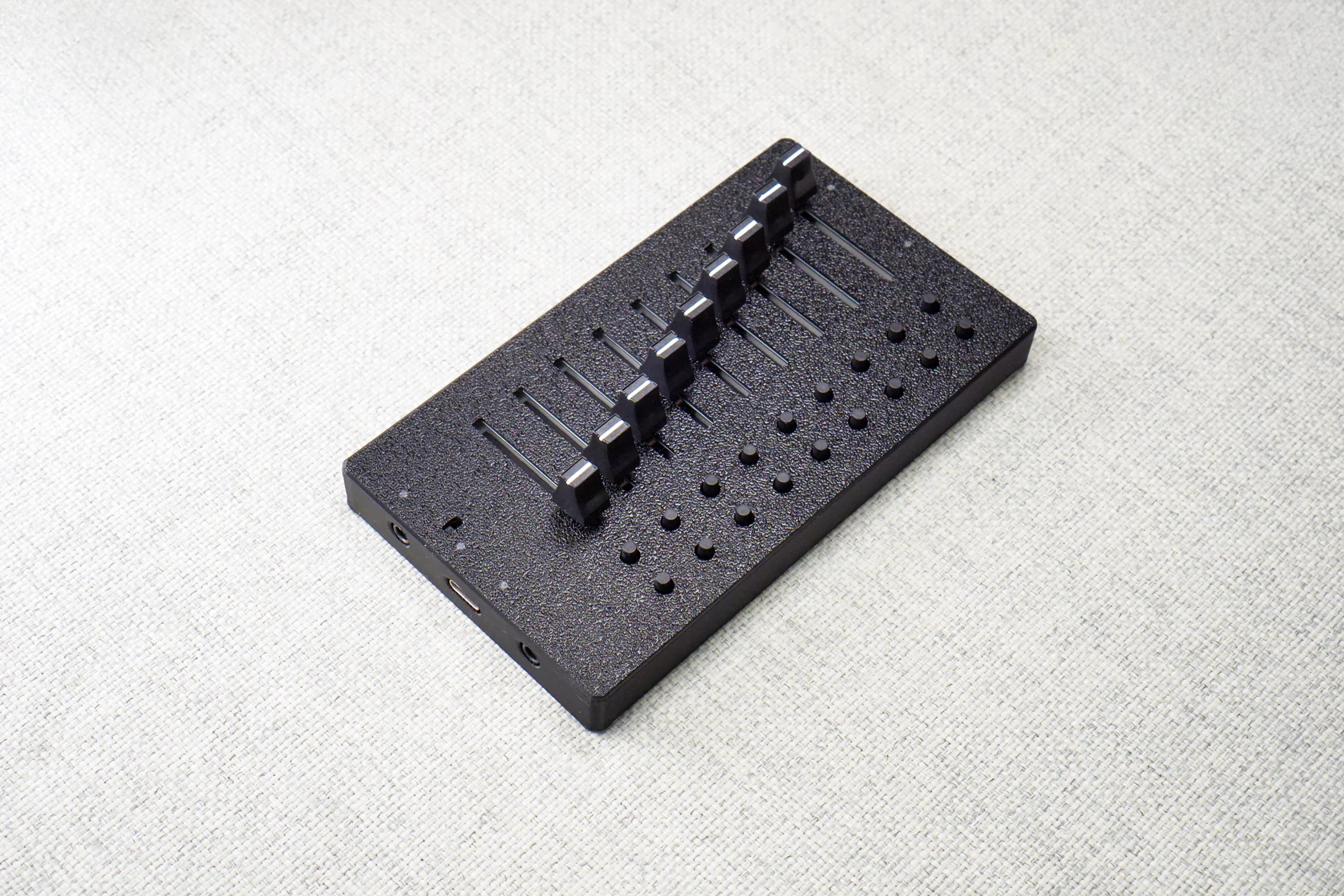

9F18K1X Product Image

Product Overview๏ƒ

The 9F18K1X is a MIDI controller equipped with 9 faders, 18 keys, and 1 expression pedal port.

Key Features๏ƒ

  • 9 30mm Faders

    • Precise control with 30mm stroke

    • 10-bit resolution support

    • Smooth slide operation

  • 18 Keys

    • Rich function assignment possible

    • Momentary/Toggle mode support

    • Integration with Bank system

  • 1 Expression Pedal Port (3.5mm TRS)

    • External expression pedal connection

    • Continuous parameters controlled by foot

    • LED lights up when TRS is connected

Specifications๏ƒ

Physical Configuration

  • Faders: 9 units (30mm stroke, 10-bit resolution)

  • Keys: 18 units

  • Expression Pedal Port: 1 unit (3.5mm TRS)

Physical Specifications

  • Size: 141mm x 80mm x 32mm

  • Weight: 101g

  • Material: PLA plastic

Technical Specifications

  • Fader Stroke: 30mm operating range

  • Resolution: 10-bit (1024 steps)

Connectivity

  • USB: USB Type-C port (cable not included)

  • MIDI Output: 3.5mm TRS MIDI OUT (cable not included, TRS switcher built-in)

  • Expression: 3.5mm TRS port

Power

  • USB bus power (5V). Consumes less than 150mA

Additional Information๏ƒ

For detailed usage instructions, please refer to the Basic Manual and Advanced Configuration sections.
