8ES๏ƒ

Product Link: 8ES

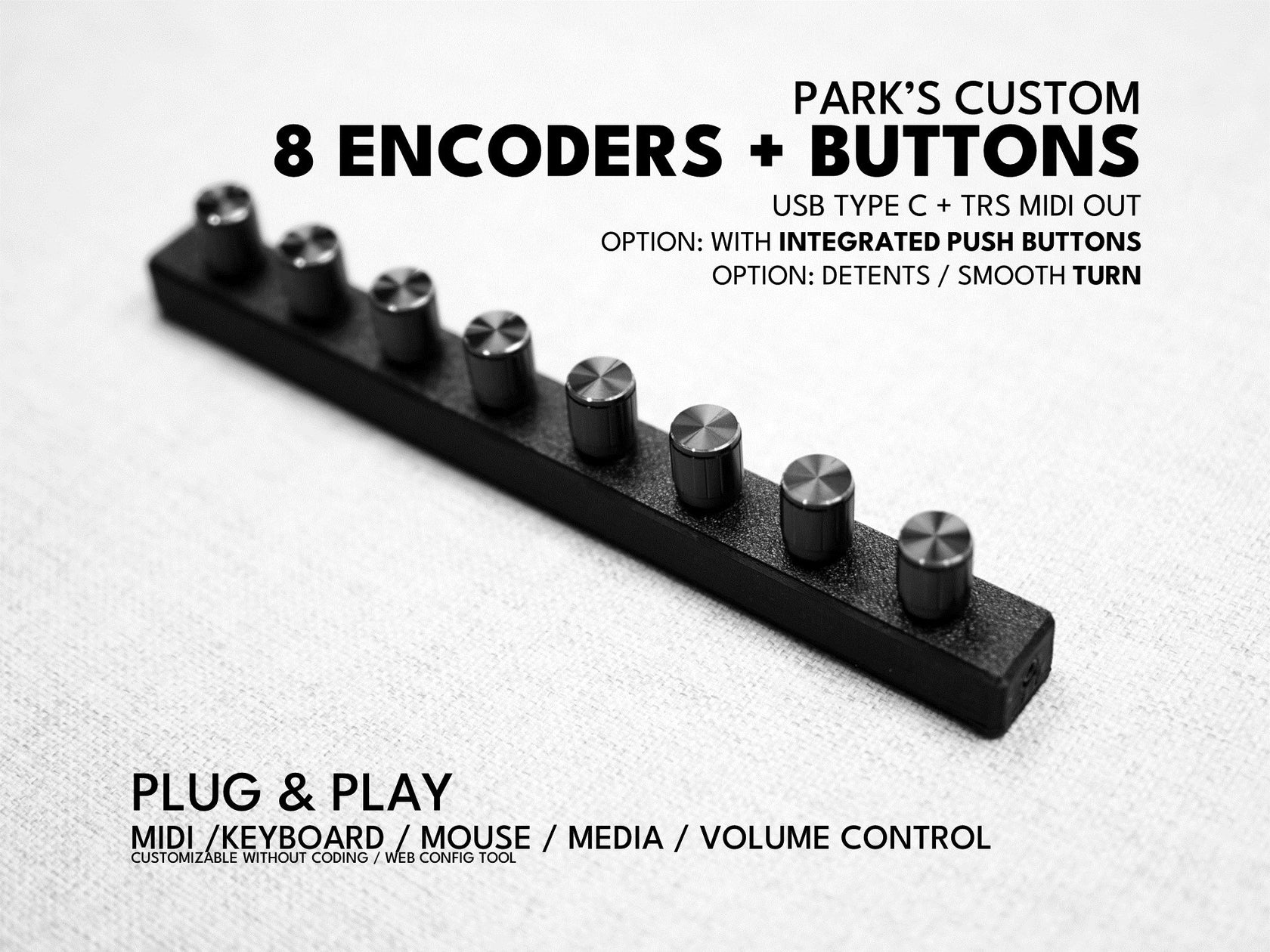

8ES Product Image

Product Overview๏ƒ

The 8ES is a MIDI controller with 8 Encoders (with integrated Keys). Each encoder has a built-in Keys, providing a total of 16 independent controls.

Key Features๏ƒ

  • 8 Encoders: All encoders with integrated push switches

  • TRS MIDI OUT: Hardware connection support

  • Bank System: Expandable through bank switching via web configuration

Specifications๏ƒ

Physical Configuration

  • Encoders: 8 (each with integrated switch)

  • Total controls: 16 (8 rotation + 8 push)

Physical Specifications

  • Dimensions: 232mm x 23mm x 34mm

  • Weight: 106g

Connectivity

  • USB Type-C port (MIDI output and power supply)

  • 3.5mm TRS MIDI OUT (5-pin DIN compatible, Type A/B switch support)

Power

  • USB bus power (5V)

  • Power consumption: Under 150mA

Bank Usage๏ƒ

Since the 8ES does not have external bank switching keys, banks can be switched using the following methods:

  • Encoder Assignment: Configure specific encoders for bank switching

  • Push Combination: Bank switching with specific push button combinations
