13K1ES-D24๏ƒ

Product Link: 13K1ES

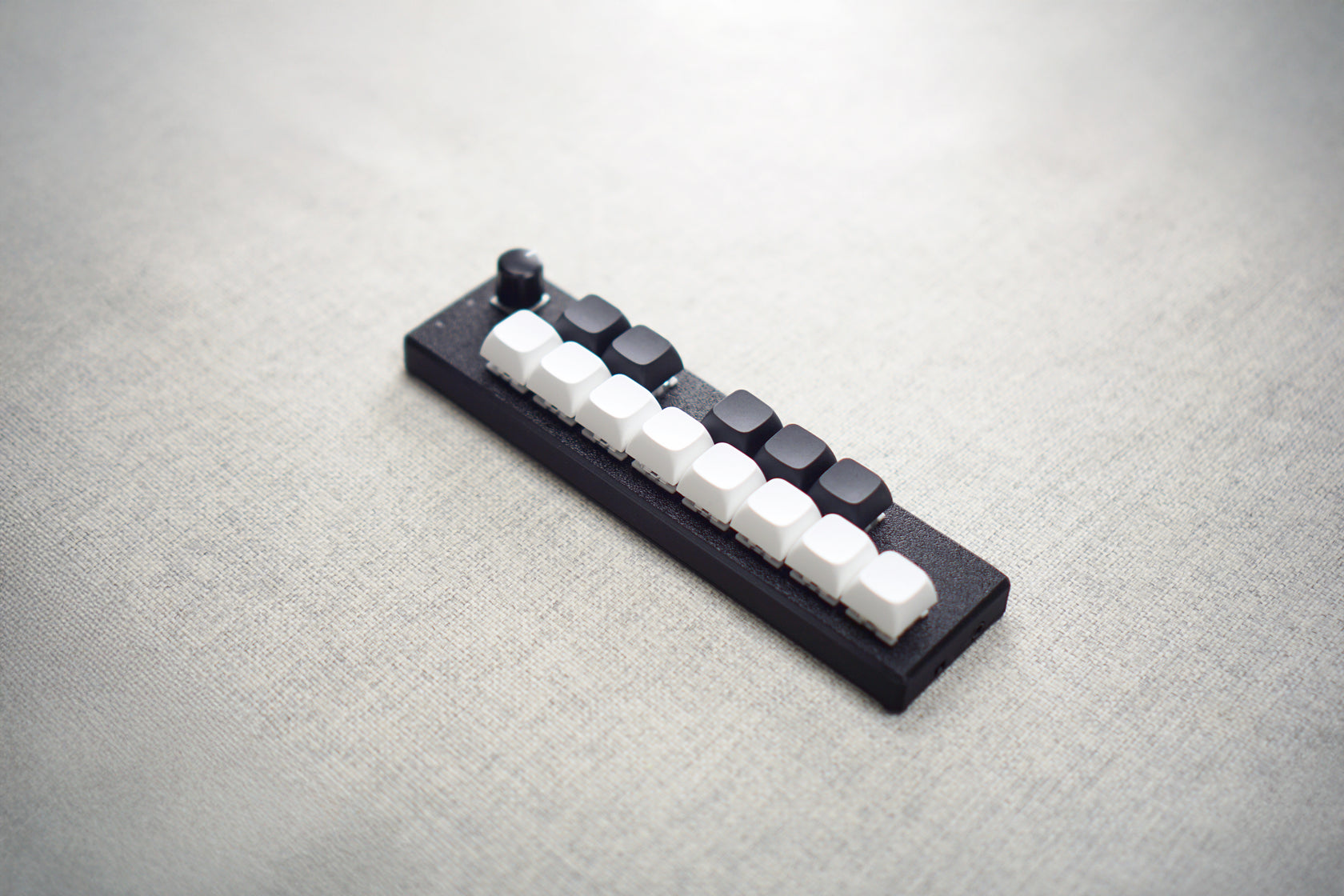

13K1ES-D24 Product Image

Product Overview๏ƒ

The 13K1ES-D24 is a special-purpose MIDI controller equipped with 13 keys and 1 detent encoder (switch integrated).

Arranged in a piano-like layout.

Key Features๏ƒ

  • 13 Keys

    • Rich function assignment possible

    • Custom macro and shortcut key support

    • Momentary/Toggle mode support

  • 1 Detent Encoder (D24, Switch Integrated)

    • Precise step control with 24 detents

    • Clear feedback with detent texture

  • Special Purpose Optimization

    • Suitable for game control and streaming control

    • Various shortcut key combinations possible

Specifications๏ƒ

  • Keys: 13

  • Encoder: 1 (D24 detent, switch integrated)

  • Connection: USB Type-C, TRS MIDI Out

  • Power: USB Bus Power

  • Size: 187mm x 50mm x 27mm

Octave Using Bank (Supported in Latest Firmware)๏ƒ

This product can change octaves using the Bank System function. For details, refer to the Bank System section.

By setting Encoders to bank change and configuring different key values for each bank, it can be used for octave switching.

  • Supported in firmware version 8 and above. Please update firmware to 9.2.0

  • Web configuration tool - global variable initialization (because the default bank index is set to 2 when firmware is updated)

  • After global variable initialization, it is configured to support up to 4 banks

  • Easy configuration available in Web configuration tool (https://config.parkstool.com).

    • When you press the โ€œReset Local Defaultโ€ button in the Web configuration tool, bank change function is automatically assigned to the encoder and each button is also set to appropriate notes.

Please refer to the video below for detailed process.

Octave Using Octave Only Mode (Supported in Latest Firmware)๏ƒ

ENABLE OCTAVE ONLY MODE has been added to Advanced Configuration. This is an octave-only mode. It uses octave functionality instead of bank functionality. Available from the lowest C0 to the highest G9.

Additional Information๏ƒ

For detailed usage, refer to the Basic Manual and Advanced Configuration sections.

Note

D24 means 24 detents, providing 24 distinct clicks per full rotation.
