1ES2K
Product Link: 1ES2K
Product Overview

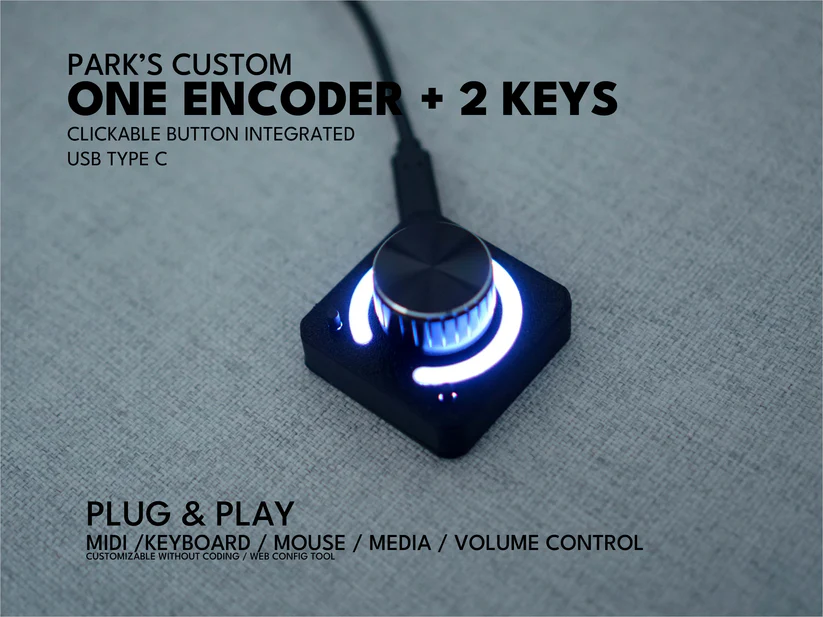

The 1ES2K is a compact MIDI controller with 1 Encodeurs (integrated switch) and 2 Touches. Unlike other products, this product includes an LED ring. Additionally, it does not have a TRS MIDI OUT jack.
Note
All products except this one have a TRS MIDI OUT jack.
Key Features
LED Ring: Provides visual feedback through LED ring around the encoder
Compact Design: Maximum efficiency with minimal space
USB Only: Supports only USB connection without TRS MIDI OUT
Bank System: Extended control possible through Bank switching via keys
Specifications
Physical Configuration
Encoder: 1 (integrated switch)
Keys: 2 (tactile switches)
LED: RGB LED Ring (customizable in the first Bank)
Physical Specifications
Weight: 40g
Size: 48mm x 48mm x 32mm
Matériau: corps en PLA + bouton métallique
Connectivity
USB Type-C port (MIDI output and power supply)
TRS MIDI OUT: None
Power
USB bus power (5V)
Power consumption: approximately 150mA
LED Ring Functions
Visual display of CC values from left to right
Bidirectional feedback: LEDs also change when values are changed in DAW (e.g., Ableton)
Real-time synchronization for hardware and software state matching
LED Ring Utilization
Visually displays current CC values (circular representation of 0-127 range)
Real-time synchronization with DAW: automatic LED updates when parameters change in Ableton Live, etc.
Bank status display: distinguishes current Bank by color
Custom color settings: LED color of the first Bank can be changed through web configuration tool
Bidirectional feedback: both hardware and software operations are reflected in LEDs

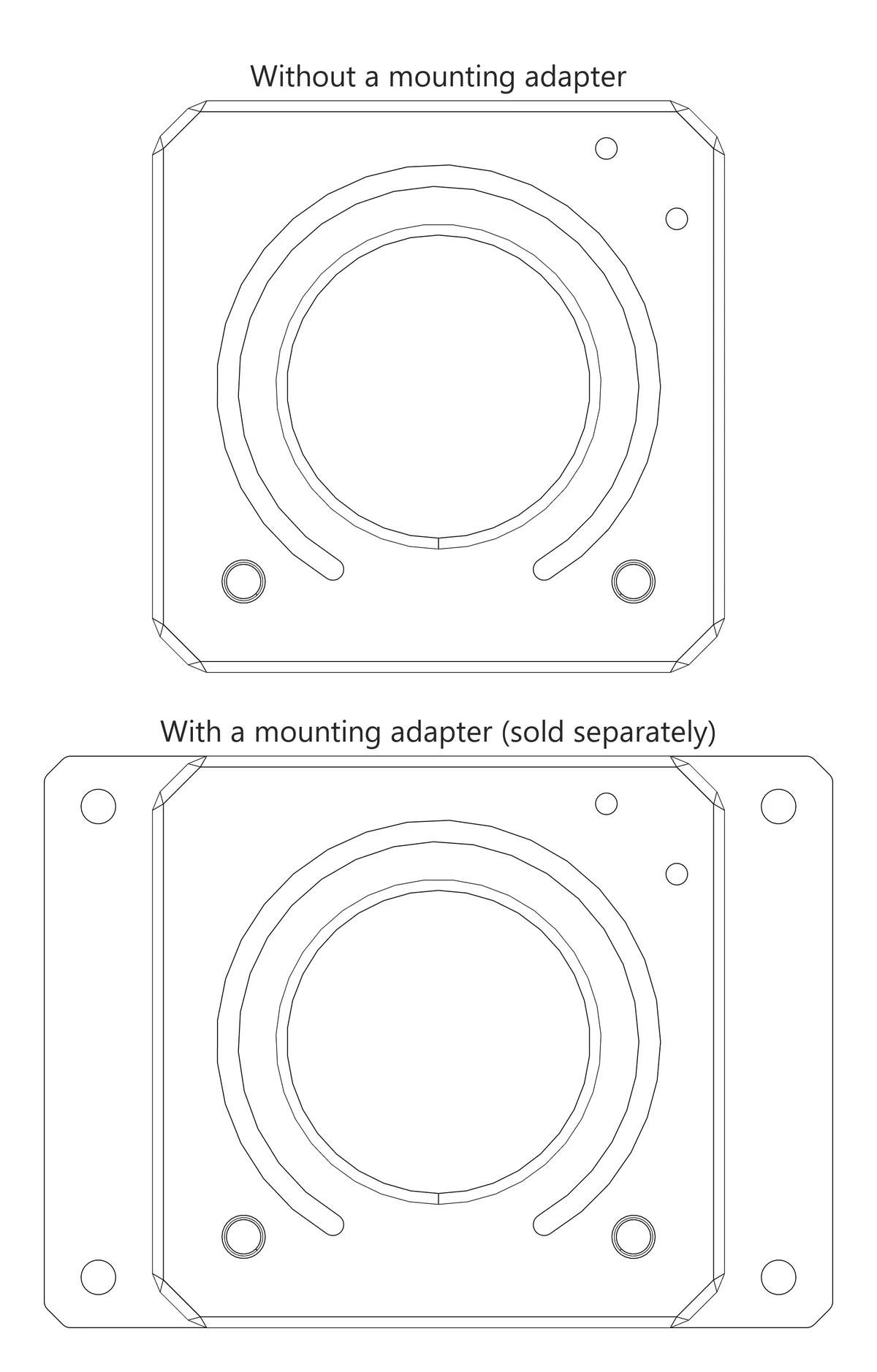

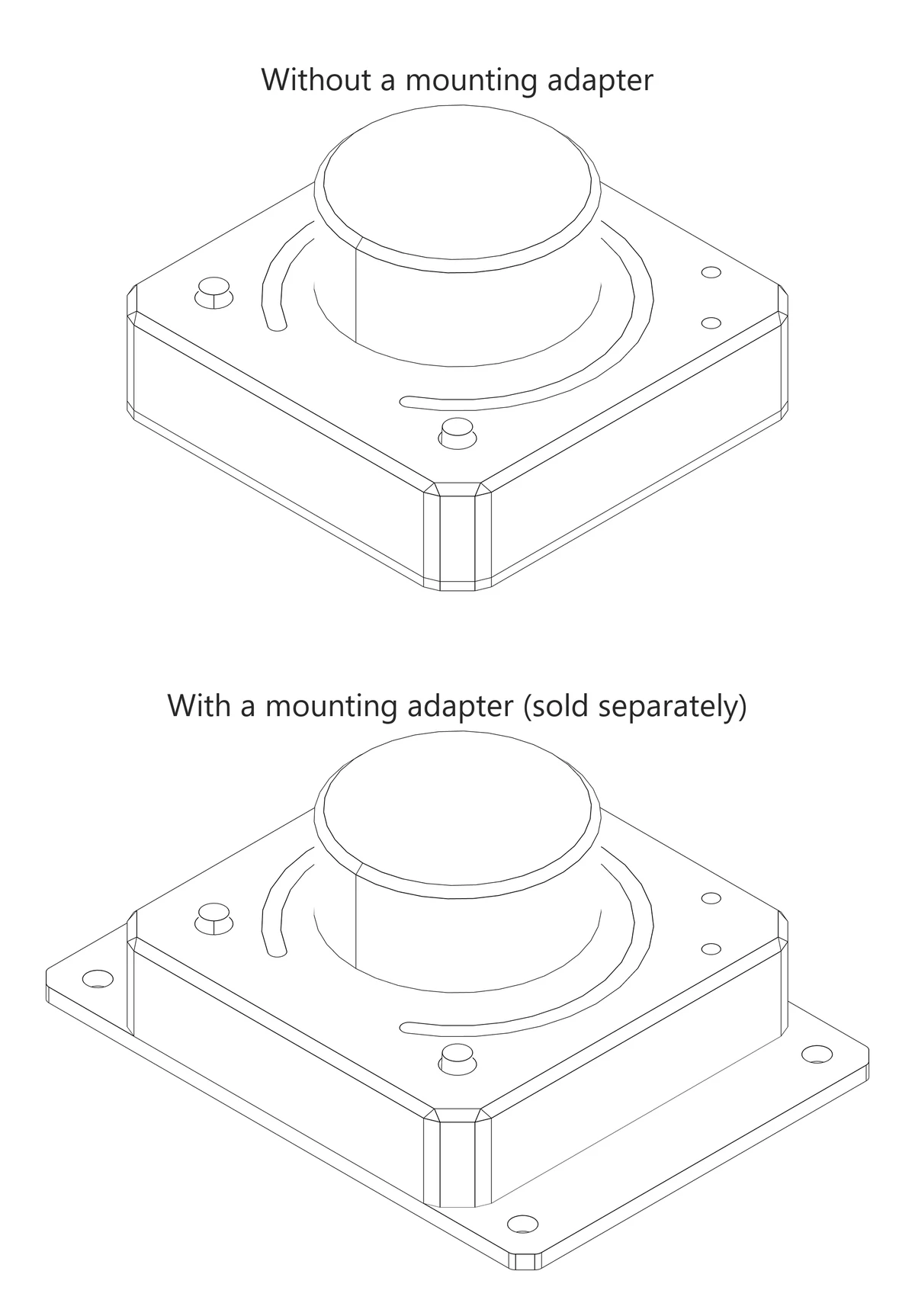

Adaptateur de montage
Une plaque de base étendue qui permet de visser le contrôleur sur un bureau, une guitare, un clavier ou toute autre surface plane. Vendu séparément — commandé ensemble, il est livré déjà monté.
